Basic solution for sealing construction joints between two concrete sections.
Features

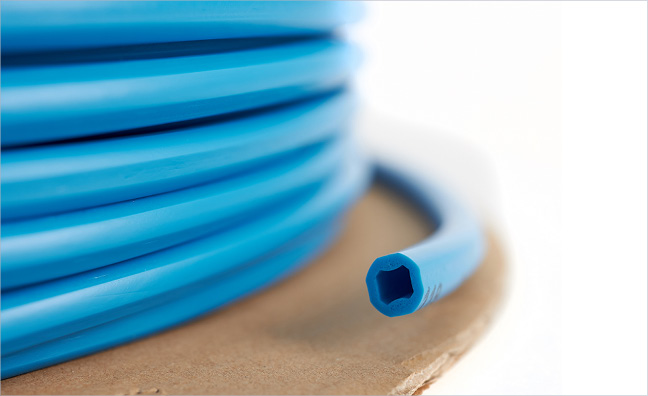

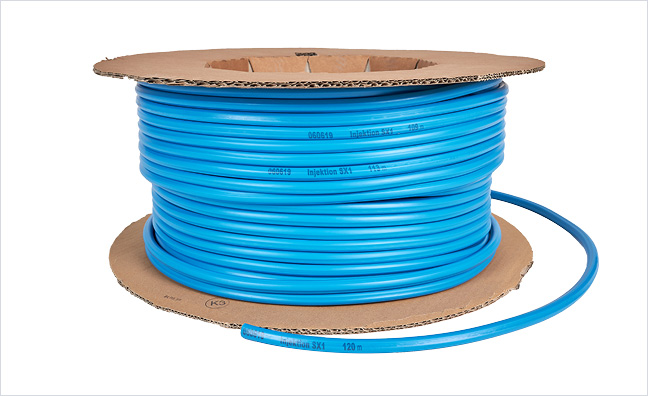

The injection system SX® 1 is a round injection hose that lies totally flat. The semi-circular depressions running along its entire length give it a unique flat contact to the joint. This not only increase the flexibility of the system, it allows the hose to be laid in a cost-effective manner. Fixing mesh can aid the fully flat contact to the joint and guarantees maximum security during the injection process.
Uses
Injection hose SX® 1 is mounted centrally in 8-12 m long sections and with full contact to a construction joint. The system’s waterproofing effect is generated by injecting the hose with a standard injection material. The injection process takes place after 28 days at the earliest.
| Art.-No. | Article |
|---|---|
| S04440120 | Injection hose SX® 1 L = 120 m 3.360 m per pallet |
| S04700000 | Varioclix |
| S04700005 | Varioclix with metal strip (pad black) |
| S04700005 | Varioclix with metal strip (pad grey) |
| S04810050 | PVC-hose blue L = 50 m |
| S04820050 | PVC-hose white L = 50 m |
| S04830050 | PVC-hose green L = 50 m |
| S04840050 | PVC-hose red L = 50 m |
| S04900001 | Hose connector PU 100 pcs. |
| S04900002 | Plug PU 100 pcs. |
| S04900004 | Hose clamp PU 100 pcs. |
| S04900005 | Stecki fixing clip PU 100 pcs. |
| S04900006 | Drive-in-anchor 5 x 30 mm PU 100 pcs. |
| S04910013 | an.kox clamp 13 mm PU 100 pcs. |
| S04925100 | Fixing mesh X1 L = 100 cm |
| S04930012 | Mounting clip X1 for expansion joint L = 100 cm |
| S04958000 | Injection nipple M8 PU 100 pcs.. |
| S04958055 | Injection nipple M8 / 55 mm PU 100 pcs. |
